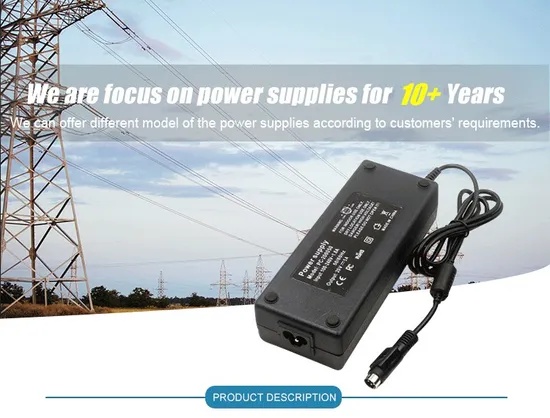

Desktop Single Output AC DC 12V 9A 108W Switching Power Adaptor for LED Light
Basic Info.
| Model NO. | PC-120090 |
| Power Source | Half-Bridge Type |
| Connection | Desktop |
| Aging Test | 100% Full Load Test |
| Material | 100% PC |
| DC Power Cord | 0.9m,1.2m,1.5m or Your Demand |
| Warranty | Two Year |
| AC Plug | EU,UK,US,AU Plug or Your Demand |
| Output Voltage | 12V |
| Efficiency | 88% Min |
| Output Current | 9A |
| Output Power | 108W |
| Input Voltage | 100-240V |
| Origin | China |
| HS Code | 8504401400 |
| Production Capacity | 150000/Month |
Product Description
Desktop Single Output AC DC 12V 9A 108W Switching Power Adaptor for LED Light
Features:
- Universal AC input/Full range(up to 264Vac)
- Protection: Short circuit/Over current/Over temperature/Over voltage
- High efficiency, long life and hign reliaility
- 100% full load burn-in test
- Meet UL ETL CE FCC RoHS SAA CB C-Tick Approved
- Two years warranty
- Class 1 design
Why Choose US:
- More than ten years experience of power supply manufacturer
- Professional team for after-sale service 7*24
- Experienced R & D team and profesional sales team
- OEM & ODM service, we will evaluate, design and produce your customized products
- Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
- Meet the safety requirements of various countries.
- Meet the environmental protection RoHS requirements of various countries.
- Meet the requirements of conducting radiation (EMC/EMI) of various countries.
Product Description:
| Desktop Single Output AC DC 12V 9A 108W Switching Power Adaptor for LED Light | |
| DC Voltage | 12V |
| Rate Current | 10A |
| Current range | 0-10A |
| Rate power | 120W |
| Voltage tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| AC Input | 100~240Vac 50/60Hz max: 90~264Vac 47/63Hz |
| Efficiency | >88% |
| Short Circuit Protection | Shall be protected when any output operation in circuit shortcondition,and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%-150% |
| Over Voltage Protection | 115%-135% |
| Operating Temperature | -10-50ºC (±10ºC) |
| Relative Humidity | 20%-90% RH |
| Storage Temperature | -40-80ºC (±10ºC) |
| DC Connector | 5.5*2.5mm or 5.5*2.1mm 4pin or bare wire (Customized Available) |
| DC Cable | 1.2m/1.5m/1.8m(Customized Available) |
| AC Cable | 1.2m ac power cord with USA/UK/EU/AU/India plugs |
Product Certificates:Pengchu product with international approval.US Market: UL FCC, ETL,DoE Level VI Efficiency,EU Market: CE CB RoHS, ERP UK Market: CE CB, ERP AU Market: SAA C-tick JP Market: PSEKR Market:KC
| Phenomenon | Standard |
| UL | UL 62368 (UL No.: E499459) |
| CB | IEC 62368-1:2014 |
| CB | IEC 60950 |
| CE | EN 60335 |
| Medical | EN 60601 |
| CE | EN 60950 |
| CE | EN 61347 |
| CE | EN 61558 |
| CE | EN 62368 |
| PSE | J60065 / J55013/J55023/J3000 |
| SAA | AS/NZS 62368 |
| More Certificates Please Contact Us | |
This plastic shell of power adapter suit for this model:(All Optional)
| No.: | Model: | Output Voltage | Output Current | Output Power | Net Weight |
| 1 | PC-050100 | 5V | 10A | 50W | 530g |
| 2 | PC-120085 | 12V | 8.5A | 100W | 530g |
| 3 | PC-120100 | 12V | 10A | 120w | 530g |
| 4 | PC-120100 | 12V | 10A | 120w | 530g |
| 5 | PC-190063 | 19V | 6.3A | 120W | 530g |
| 6 | PC-200060 | 20V | 6A | 120W | 530g |
| 7 | PC-240040 | 24V | 4A | 96W | 530g |
| 8 | PC-240050 | 24V | 5A | 120w | 530g |
| 9 | PC-240050 | 24V | 5A | 120w | 530g |
| 10 | PC-3600342 | 36V | 3.42A | 123W | 530g |
| 11 | PC-480025 | 48V | 2.5A | 120W | 530g |

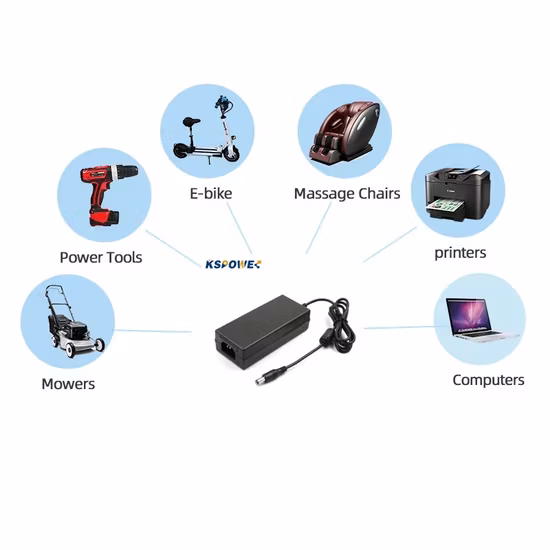

Product Application:AC Power Cord & DC Jack:Company Information:
Trade Term:
- Payment term: PayPal, Western Union, T/T
- Leading time:7-9 working days
- Sample: 3-5 working days after payment confirmed
- Freight cost: Customers's shipping agent or our forwarder
FAQ:
Q:Are you manufacturer? A:We are a professional power supply manufacturer with high reputation in this field. Q.Do you have certificates for your products? A:Yes,we have UL,ETL,FCC,RoHS,CE,KC,SAA, PSE,REACH and DOE Level VI Standard Certifications. Q: What is your samples lead time or goods delivery time? A: Samples time about 3 working days,goods time about 12 working days. Q:Can we print our logo? A: We can print your logo on both power adapter and package.
