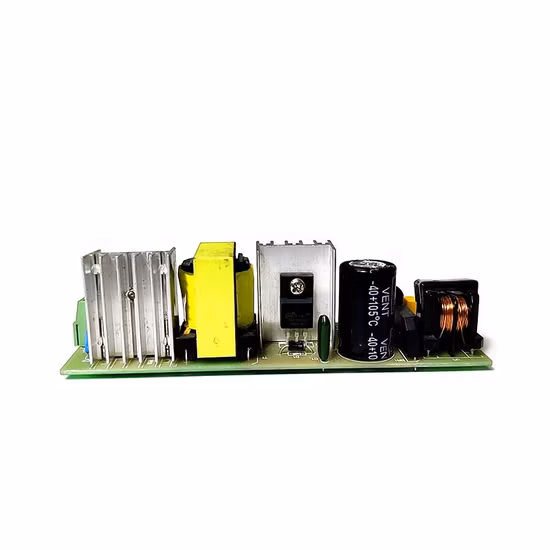

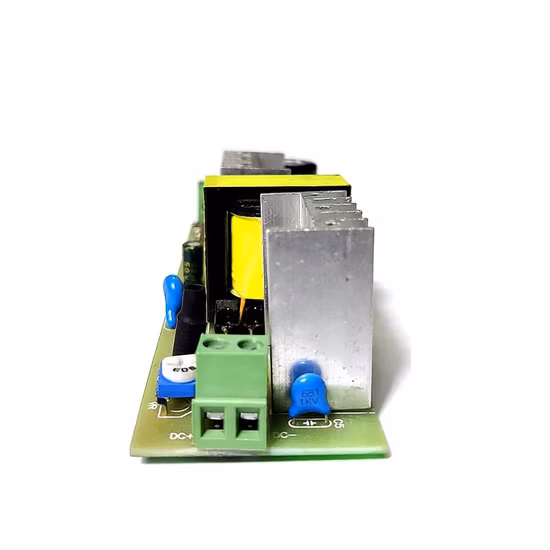

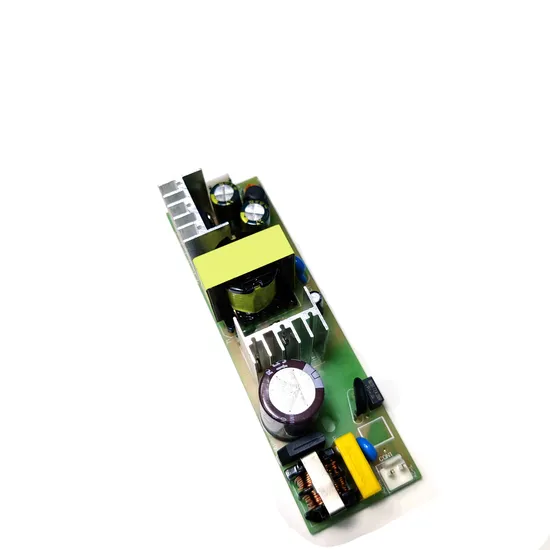

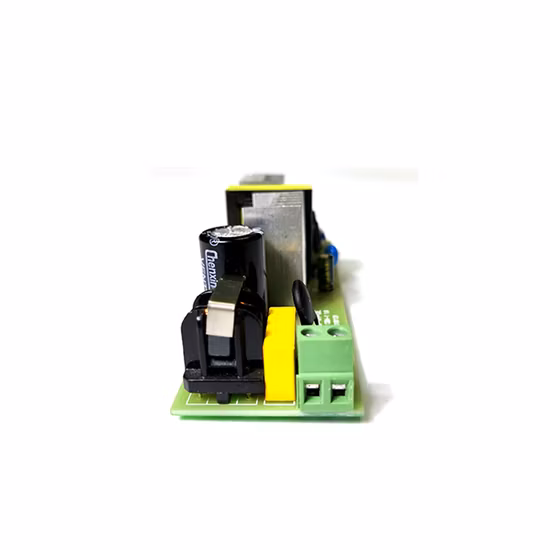

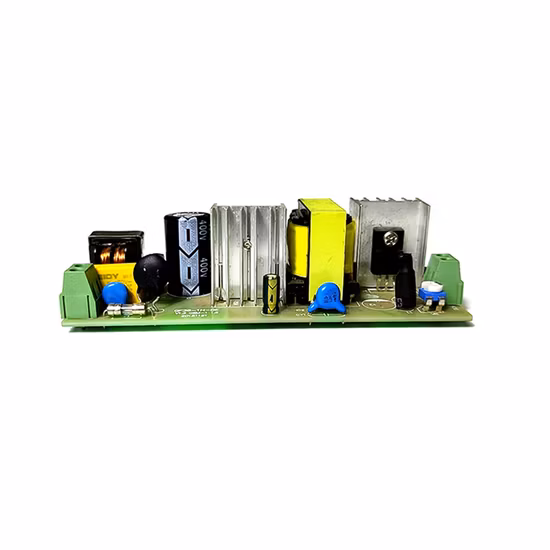

Customizable PCB Board AC 100-240V to DC 3.3V 5V 6V 9V 12V 13.8V 24V 36V 48V 1A 2A 3A 24V2.5A Switching Power Supply 60W
Send to us
Basic Info.
Model NO. GF60-1B-DE
In-Out Lifting Pressure Type
Power Supply Voltage AC85-265
Pack Sealing Size No
Brand Gofern
Transport Package Carton
Specification PCB
Trademark GOFERN
Origin Shenzhen
HS Code 8504401400
Production Capacity 100000pieces/Month
Product Description

Customizable PCB Board AC 100-240V to DC 3.3V 5V 6V 9V 12V 13.8V 24V 36V 48V 1A 2A 3A 24V2.5A Switching Power Supply 60W Manufacturers Open Frame Power Supply

Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full loading burn-in test
1 years warranty
AC 90-264V INPUT
WITH CE APPROVAL
Dimension:145*46*40(L"W"H")

MODELGF60-1B-DE
OUTPUTDC VOLTAGE24V
OUTPUT POWER60W
CURRENT RANGE0-2.5A
RIPPLE & NOISE(max.)120mVp-p
VOLTAGE ADJ. RANGE±10%
LINE REGULATION±1.0%
LOAD REGULATION±2.0%
VOLTAGE TOLERANCE±2.0%
CONNECTION TERMINALDC+; DC-
INPUTVOLTAGE RANGE110 ~ 264VAC
AC CURRENT(Typ.)0.35A/ 226VAC 0.18A/ 240VAC
CONNECTION TERMINALAC-L, AC-N
PROTECTIONOVER LOAD115%~135% of rated power; Pulsing hicuup shut down,auto recovery
OVER VOLTAGERated output voltage of 105%~150% start overvoltage protecion
Protection: burst mode,load of abnormal conditions removed the automatic recovery
SHORT CIRCUITvoltage off and reset input for recovers
ENVIRONMENTWORKING TEMP.-0°C ~ +45°C (Refer to output load derating curve)
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP.,HUMIDITY-20°C ~ +85°C 10~95% RH
TEMP. COEFFICIENT±0.05%/°C
COOLING METHODBY FREE AIR CONVECTION
SAFTYSAFTY STANDARDSCE EN60950-1 Approved
WITHSTAND VOLTAGEI/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
EMI CONDUCTIONCompliance to EN55022
HARMONIC CURRENTCompliance to EN61000-3-2,-3
EMS IMMUNITYCompliance to EN55024
OTHERSDIMENSIONL145*W46*H40MM
WEIGHT 0.17Kg,100PCS/Carton
HEAT SINKSilver aluminium: 25*30*28MM
